| PRISMS & FLATS | |||
PRISMS (Standard)
|
FLATS (Standard)
|
||
| Size : | 5 - 250 mm | Size : | Upto 1,000 mm Diameter |
| PRISMS | ||
 |
 |
 |
| Corner Cube With Integral Mounting Flange (Dihedral angle error ±0.5 arc sec) |

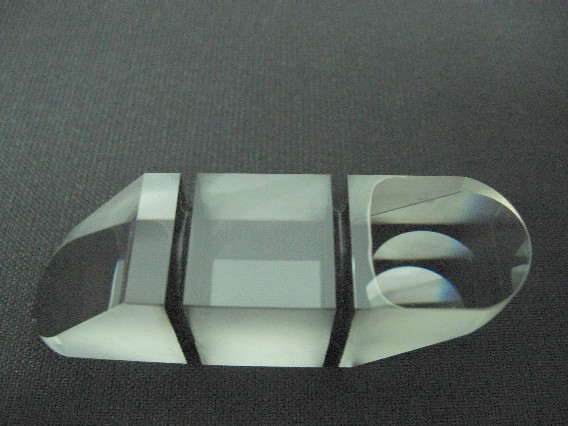

Rhomboidal Prism (With Built-in Aperture Stop) |

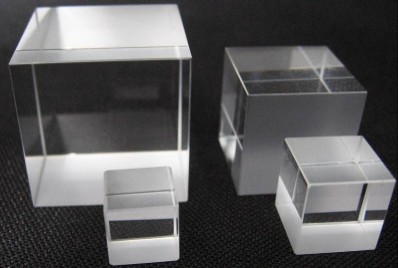

Alignment Cubes (Angular accuracy : ±1 arc sec or better) |
 |
 |
 |

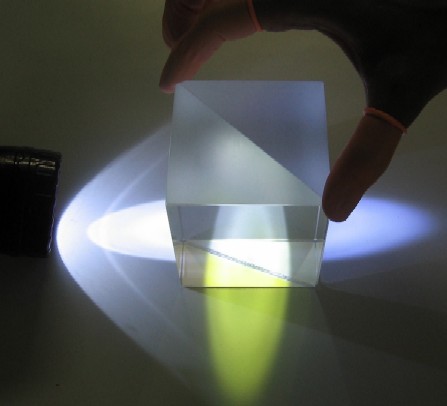

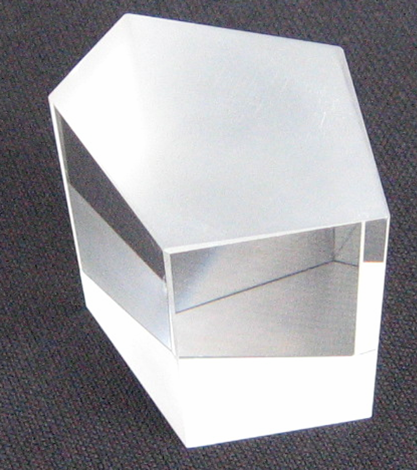

| Penta Prism | Cube Beam Splitter | Schmidt Prisms |
 |
 |
 |

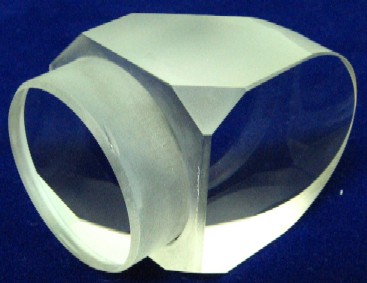

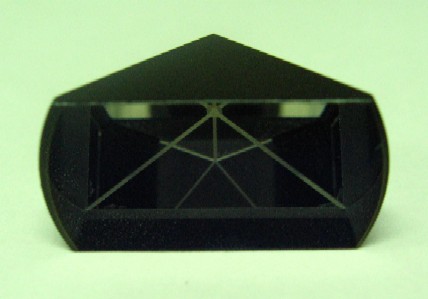

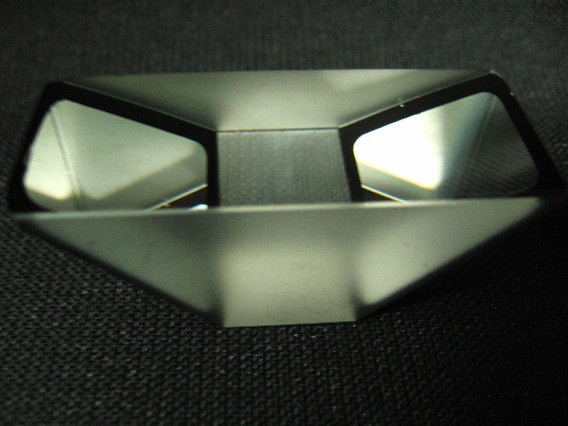

| Special Prisms | Corner Cube Prism | Dove Prism |
 |
||
| Cemented Triplet Prism (1PoroPrism + 2 Right Angle Prism) | ||

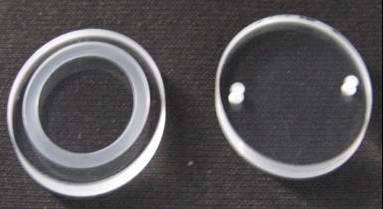

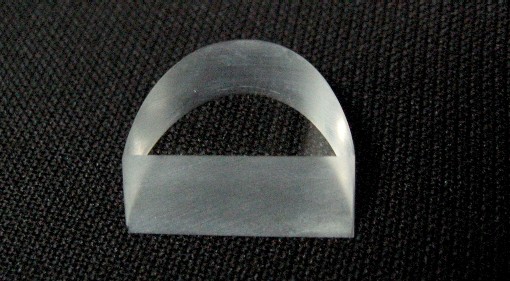

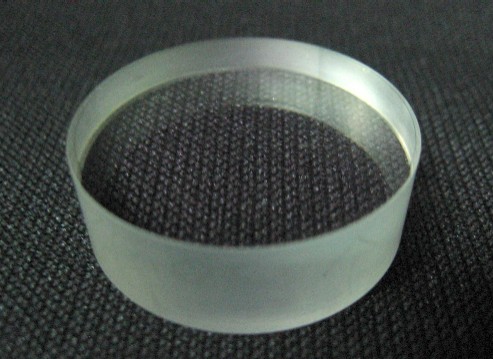

| FLATS | ||
 |
 |
 |
| Window | Elliptical Mirror | Cover & Cuvette |
|
|
|

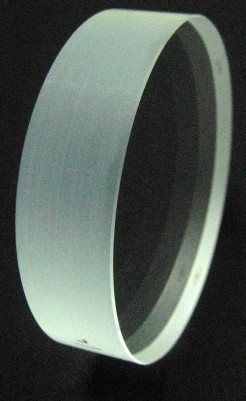

| Wedges | High Precision Optical Flat (λ/20) | |
