METALS
|
NON-METALS
|
||
|
Aluminum Alloys (AA6061, AA2024)
|
Glass (Light Weighting), Glass (Milling) |
PARAMETER
|
SPECIFICATION
|
||
| Overall Diameter | 10 - 160 mm | ||
| Overall Length | 5 - 260 mm | ||
| Dia To Wall Thickness Ratio | 40 | ||
| Diameter Tolerance | Precision Location / Interference Fit |
||
| Bore Spacing Tolerance | Upto 10 µm | ||
| Concentricity Requirement | Upto 2 µm | ||
| Roundness | Upto 5 µm | ||
| Thread Pitch | 0.5 - 1.5 mm | ||
| Multi Start Threading | Upto 45 Starts | ||
| Aperture Stops | All Types | ||
| Tapping Nominal Size | upto 6 mm | ||
| Engraving | Line Width Upto 0.1 mm | ||
| Air Gap Tolerance | Better Than 10 µm |
Computer Aided Machining : MasterCAM® X4
Some of the Components made at GOAL
|
|||
 |
 |
 |
 |

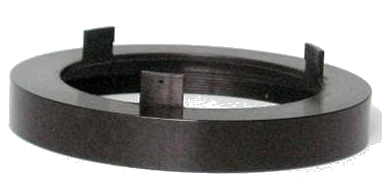

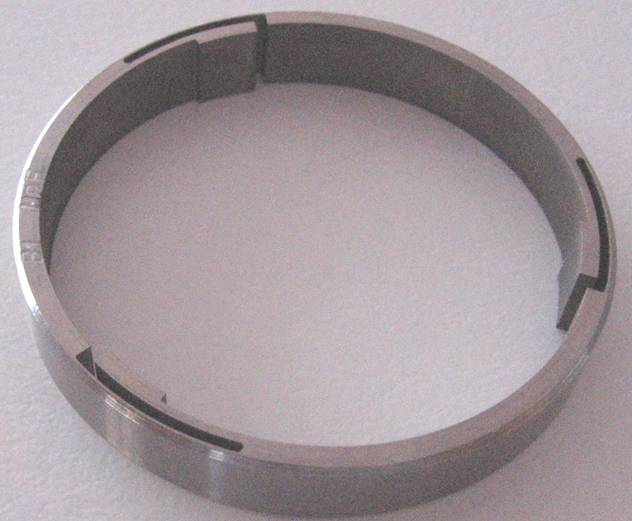

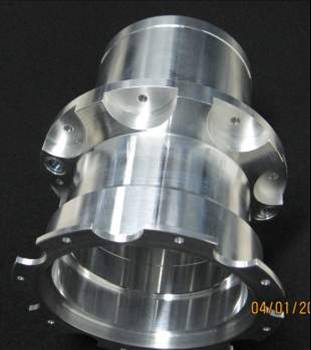

| Lens Barrel for Aerospace Application | Flexural Lens Mount for Space Application
|
||
