TYPICAL
SURFACE TREATMENT |
MATERIAL |
FILM THICKNESS RANGE (µm) |
FILM THICKNESS TOLERANCE (µm) |
ANODIZING |
ALUMINUM |
15 - 25 |
±3 |
PHOSPHATING |
STEEL |
20 – 40 |
±5 |
STAINLESS STEEL BLACKENING |
STAINLESS STEEL |
10 - 20 |
±5 |
PAINTING |
ALL METALS (including Invar*, Titanium*, etc.) |
50 – 120 |
±10 |
| * Space qualified paints
|
|||
| CONVERSION COATING PROCESS | |||
SURFACE TREATMENT
|
MATERIAL
|
FILM THICKNESS RANGE (µm)
|
|
BLACKENING
|
BRASS
|
1- 2
|
|
STEEL BLACKENING
|
STEEL
|
1- 2
|
|
CHROMATIZING
|
MAGNESIUM ALLOY
|
1- 2
|
|
Some Anodized Parts
|
|||
 |
 |
||

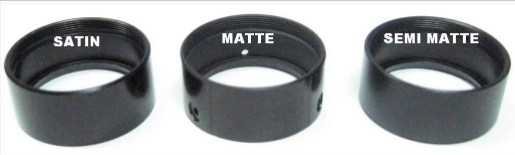

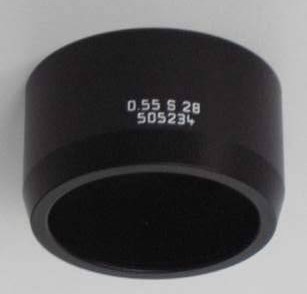

| Anodizing Finishes | Anodized Aluminum Housing (ENGRAVED) | ||
|
|
||

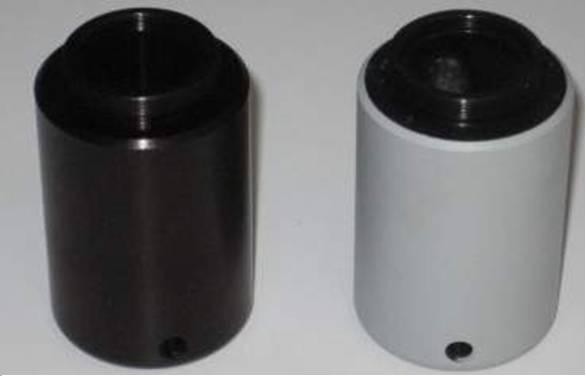

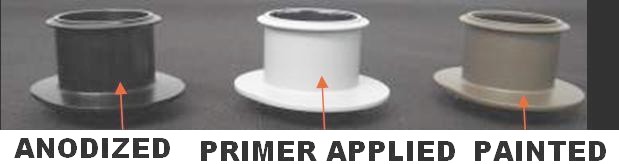

| Anodized, Primer Applied & Painted | Machined, Anodized & Painted with Special Water Base Paint | ||
