| LENSES | ||
| Diameter Range: | 2 mm - 1,000 mm |
|
| Centering Accuracy: | better than 5 arc sec. | |
| Surface Figure: | better than λ/10 PV | |
| Center Thickness Tolerance: | < 5 µm | |
| Radius Tolerance: | ± R/5000 or ± 5 µm | |
|
Diameter Tolerance: |
h6 or better | |
| Cosmetics : |
MIL : 10 - 5 ISO : 0.063 |
|
|
|
||

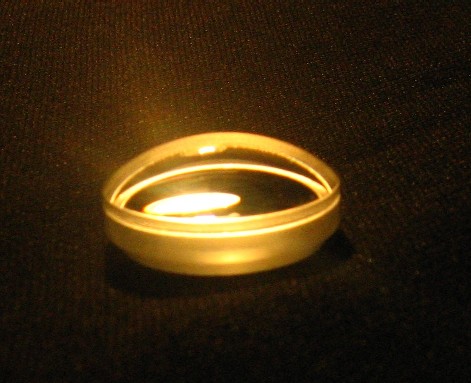

| Singlet | Doublet | ||
|
|
||

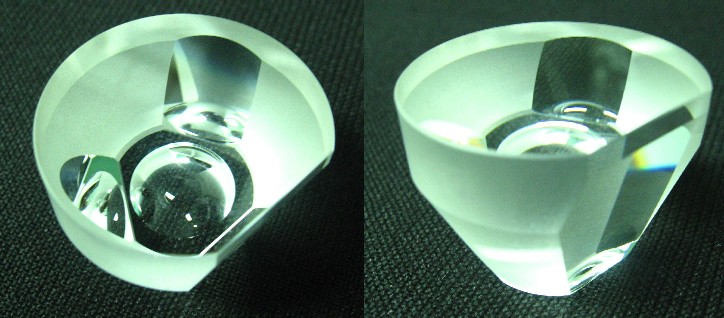

| Triplet | 3 Mirror Laser Lens | ||
|
|||

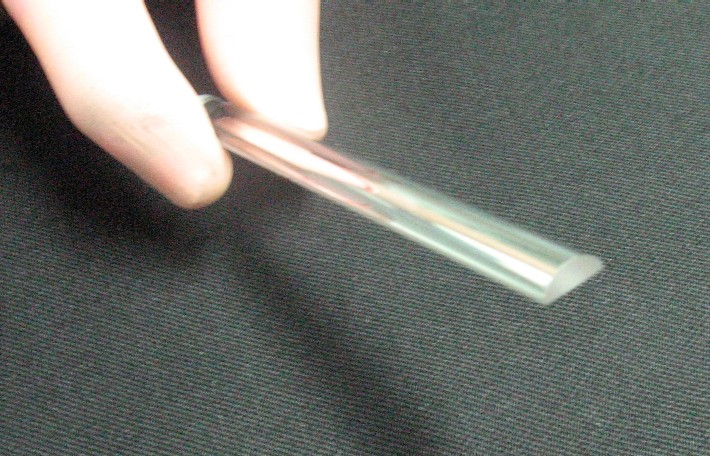

| Cylindrical Lens | |||
